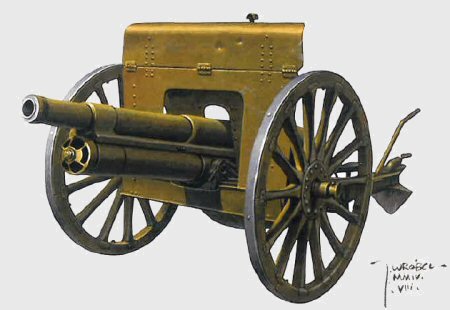

← 75 mm wz.1902/26 gun with a lower skirt folded. [artwork J. Wróbel] |
Note: this page is focused on the Polish service of this cannon. You can read more about its development and design in Wikipedia article. Links in a text without an underline lead to other relevant Wikipedia articles.
 |

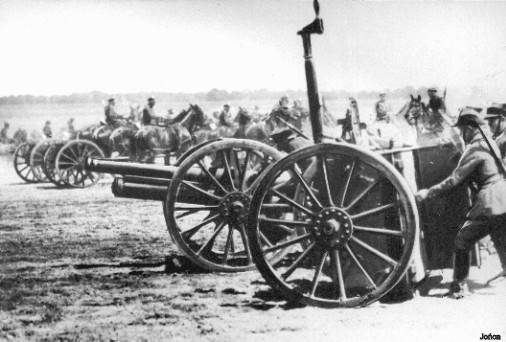

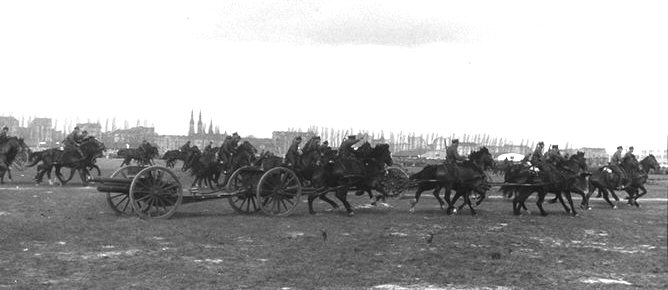

| 75mm wz. 02/26 guns on cavalry manoeuvres |
 |

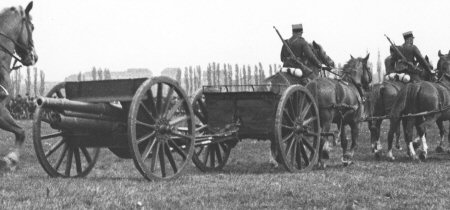

| 75mm wz. 02/26 guns of horse artillery, May 1939. [NAC 1-P-2877-7] |
 |

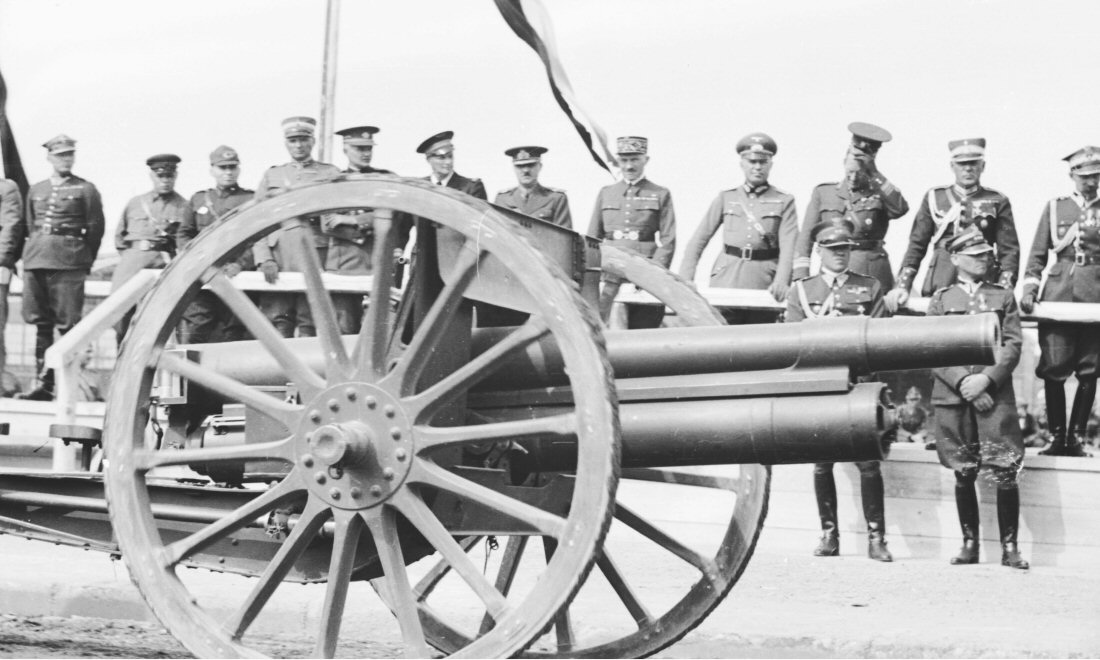

| Well visible details of wz. 02/26 gun on a parade in 1938. [NAC 1-W-987-34] |
 |

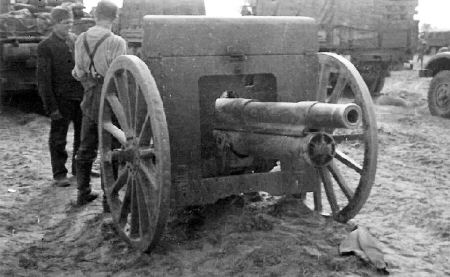

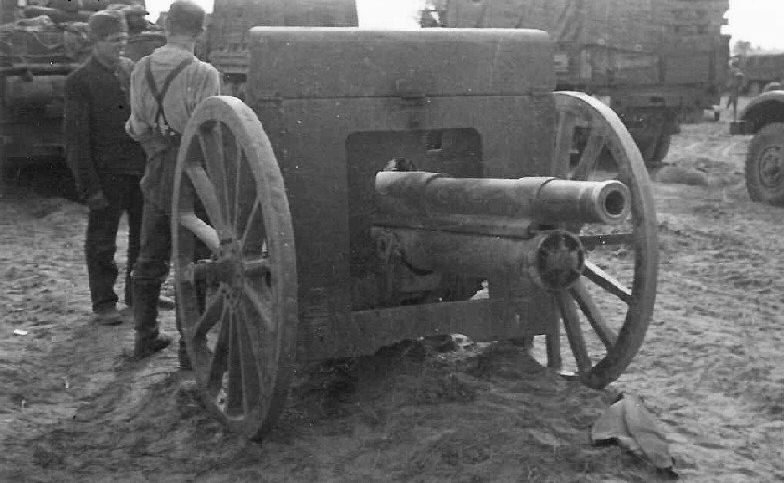

| Polish wz. 02/26 gun captured by the Germans. Well visible is a fixed shield, with unfolded upper and lower part, and a movable shield behind. |
 |

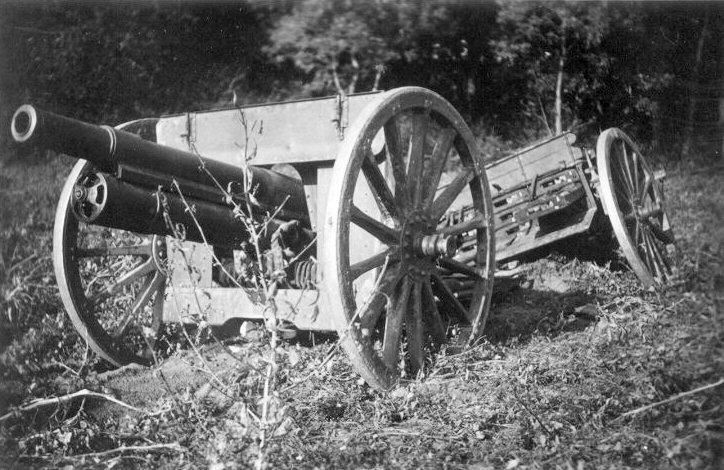

| An abandoned wz. 02/26 gun, with a Russian limber for 36 rounds of infantry artillery (well visible are drawers and a crew seat). The gun has an upper shield folded, in a marching position, and a lower skirt unfolded. |
 |

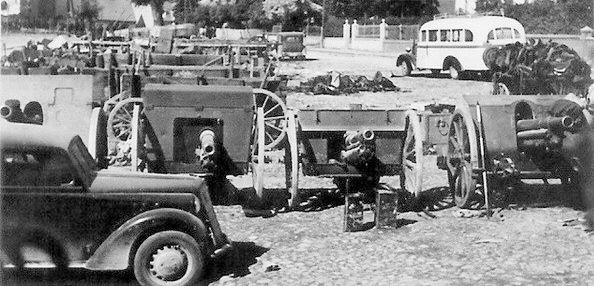

| Two wz. 02/26 guns with 100 mm wz. 14/19 howitzers, captured by the Germans. A interesting shot, on which one gun and one howitzer have folded shields, and the rest have unfolded upper shields. There is apparently a bullet mark on left gun's shield. |
 |

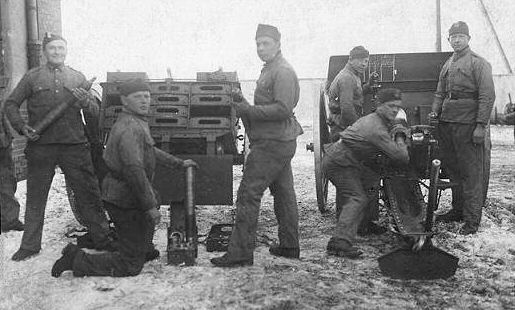

| A full crew of the gun from infantry artillery, with an open caisson (of Russian origin). An ammunition soldier is setting a fuze in a French setter, which suggests, that this is wz.1902/26 gun, however it has an original wide spade and straight directional handle. A layer is making chalk notes on a shield. In horse artillery there was an additional crewman, to roughly aim the gun by moving its tail, and there were different caissons. |
 |

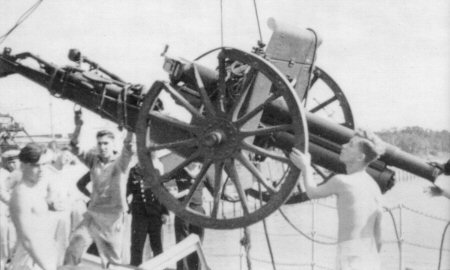

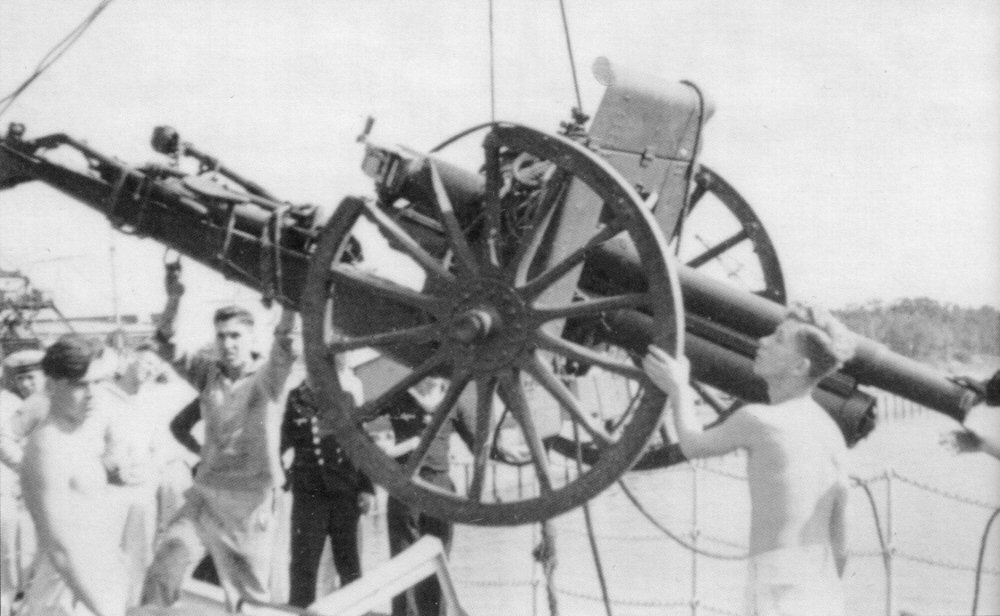

| A damaged original 76 mm wz. 02 gun from Westerplatte is taken abord Schleswig-Holstein battleship as a trophy. |
Russian 76.2 mm model 1902 field cannon (obrazca 1902 goda, obr. 1902 g.), originally designated as 3-inch, was a design of Putilov Works in St. Petersburg, inspired by the French 75 mm Mle 1897 cannon. It appeared a satisfactory design, cheap and reliable and similarly long-lived, as its French counterpart, taking active part in World War II. It remained a basic Russian and Soviet field gun until the 1930s, then replaced with a modernized variant M.1902/30. The original design was also adopted by several other countries, usually using captured guns. One of main foreign users was Poland, where it was designated wz. 1902 (1902 Pattern) cannon (wz. 02 in short). After conversion to 75 mm wz. 1902/26 cannons (wz. 02/26), they were a mainstay of Polish horse artillery of cavalry brigades in World War II.
Russian model 1902 cannons were a familiar sight in Russian garrisons on annexed Polish territories, and took part in early World War I battles there. After Poland had regained independence in November 1918, only few wz. 1902 guns were found in former German or Austrian depots of war booties. In April – May 1919 there were only 20 such guns in Polish inventory, but in a course of wars with Western Ukraine and with Soviet Russia in 1918-1920, this number grew thanks to a great quantity of captured material. On 1 October 1920, Poland already had 322 cannons wz. 1902 in service, what made it second most numerous artillery piece, after 75 mm wz. 1897 cannons. From 1920, these guns started to become a standard in horse artillery of cavalry brigades – by the beginning of 1921 they replaced other artillery systems there, and remained in this role until World War II. An advantage in this purpose was their rugged construction and a low centre of gravity, allowing fast ride, despite the design was slightly heavy for horse artillery. Initially they were also used in some light artillery units. By 1920, these guns also became the most typical armament of Polish armoured trains, which were in great part war booties as well. In 1923, there were 568 guns wz. 1902 in inventory[1]. According to some sources, 108 guns were exchanged with Romania for French 75 mm wz. 1897 guns.
In mid-1920s it was decided to refit Polish wz. 1902 guns in order to use French 75 mm ammunition of wz. 1897 gun. A reason was a limited stock of Russian ammunition and a desire of standardization, especially that 75 mm ammunition was manufactured in Poland. As a result, in 1926-1930 most of guns were converted to 75 mm caliber in Starachowice Works, creating wz. 1902/26 cannons, either by replacing barrel's core tube, or fitting a special "sleeve" inside the barrel. As a side effect, their maximum range grew from 8.5 to 11 km (a practical range was 7 km). Also sights and training mechanisms were modified – scaled in standard French units (metres and mils), instead of Russian ones. A tail was modified by replacing a wide spade with a narrow one, and a straight directional handle with a bended one. There were also other minor modifications, among others holders for equipment were added to carriage sides. For wz. 02/26 guns there were adapted Russian and Italian limbers and caissons, modified in Poland.
Apart from horse artillery, from 1928 wz. 02/26 guns went to newly created artillery platoons in infantry regiments. From a report on the Polish artillery by its superintendent General Miller it is apparent, that at least 466 guns must have been converted to wz. 02/26 standard (other sources give numbers "around 400", 429 or 461[1]). These cannons were commonly called: ''prawosławna'' (the orthodox) in Poland, due to their Russian origin.
In June 1939, before World War II, there were 466 cannons wz. 02/26 available (47 in a reserve), according to General Miller's report (according to other sources, there were 425 guns in the Army in August 1939[1] – a difference probably comes from not counting reserve guns, which could be in a different number then). Average condition of barrels was estimated at 93% (9300 shots remaining).
Wz. 02/26 cannons were the only gun type used in eleven Horse Artillery Detachments (Polish: Dywizjon artylerii konnej, dak), in each Cavalry Brigade. In 1938 there were 210 cannons in the horse artillery. A detachment (Polish: dywizjon, not to confuse with a division) had 12 or 16 guns, in four-gun batteries; their number depended on whether a cavalry brigade had three or four cavalry regiments. The battery was divided on two platoons. In 1939 there were eight three-battery detachments (Nos. 2-7, 13, 14) and three four-battery detachments (Nos. 1, 9, 11). There were also created at least three additional batteries and one platoon of surplus guns during the mobilization.
Second user of 75 mm wz. 02/26 guns were two-gun infantry artillery platoons in 90 infantry regiments of 30 regular infantry divisions. Their primary purpose was to provide the infantry with a direct support in an attack. In 1938 there were 186 guns in the infantry. Despite plans, regiments of reserve infantry divisions, created during a mobilization, did not receive own artillery. It is noteworthy, that Polish regimental artillery had longer range (and potential anti-tank capabilities), than regimental artillery of enemies, as a side effect of adopting old field guns instead of special short-barrel infantry guns. On the other hand, special infantry guns were lighter and could accompany the infantry more easily (not mentioning, that German and Soviet infantry regiments had more guns of this caliber available – six).
75 mm guns wz. 02/26 were also used in Polish armoured trains, mounted in artillery turrets of armoured wagons, on original shortened gun beds or naval central pedestal mountings. Ten mobilized armoured trains used 24 guns 75 mm in total, at least four more guns were in reserve wagons (more on a separate page).
The guns captured by the Germans were assigned a designation: 7,5 cm FK 02/26(p). They were still used in captured Polish armoured trains (Panzerzuge: 10, 11, 21, 22). Shortages of more modern equipment in a later course of war caused, that even part of obsolete towed guns FK 02/26(p) were assigned to combat units, eg. the 299th Infantry Division of VI Army Corps, fighting on Belarus and destroyed there in June 1944. For a short period Polish wz. 02/26 guns were also used in former Polish armoured trains nos. 51, 53 and 55, captured in 1939 by the Soviets and then used by NKVD border forces until German attack in 1941.
Apart from 75 mm wz. 02/26 guns, a small number of original 76.2 mm wz. 02 guns remained in Polish service – there were still 89 in August 1939. Half of these guns were used to create 22 two-gun positional artillery platoons, assigned to units defending fortified areas (eg. Wizna, Modlin, Węgierska Górka, Osowiec). They were meant for a stationary defence, for they had no horse teams and could be pulled for a short distance only by crews. Part of them were to be built-in into fortifications[1]. It should be noted, that wz. 1902 guns differed from all other guns used by the Polish in 1939 by retaining a Russian system of scaling sights and training mechanism.
There was also created one three-gun platoon No. 111, but in summer of 1939 one of its 76.2 mm guns was clandestinely sent to Polish transit depot at Westerplatte in Gdańsk, defence of which became one of symbols of Polish campaign. It was the only field gun available at Westerplatte and on 1 September 1939 it fired 28 rounds across a harbour channel, destroying German MG emplacements in harbour warehouses, before it was damaged by a battleship Schleswig-Holstein. The platoon No. 111 itself, with two guns, was assigned to the 2nd Naval Rifle Regiment of the Land Coastal Defence, defending an area around Gdynia until 19 September 1939 (apart from these, it had own platoon of 75 mm wz. 97 guns, and both types operated together, what caused some trouble for a commanding officer, due to different methods of calculating fire orders).
A number of guns were given to the KOP – Border Protection Corps, defending Poland's eastern border against the Soviet invasion after 17 September 1939. There were at least 7 guns assigned in September 1938 for Sarny fortified area (it is hovewer not clear, if they were not replaced with wz. 97 guns subsequently, according to later order). The KOP also had three of mentioned positional artillery platoons, formed in KOP NCO School in Osowiec (Nos. 36-38).
Most of Polish artillery pieces were captured by the Germans, the rest were captured by the Soviets. In November – December 1940 the Germans sold to Finland 54 original 76 mm guns model 1902, presumably of Polish origin. In Finland they were designated as 76 K/02 and joined 195 guns of this model already in posession (most being captured from the Soviets in 1918–1940). It was the most numerous Finnish field gun of World War II, and they remained for training for many years after the war (you can read about Finnish usage of M.1902 guns on a friendly Jaeger Platoon site).
| wz.1902 | wz.1902/26 | |
|---|---|---|
| Caliber: | 76.2 mm | 75 mm |
| Maximum range: | 8550 m | 10 700 m[3] |
| Elevation: | -6 +16° | -6 +16° |
| Horizontal arc of fire: | 5.5° | about 5° (90 mils) |
| Muzzle velocity: | 588 m/s | 600 m/s |
| Shell weight: | 5.8 - 6.2 kg | 5.2 - 7.9 (see below) |
| Max. rate of fire: | 10 rds/min | 10 rds/min |
| Crew: | 6-7 | 6-7 |
| Length (combat position): | 4350 mm | 4350 mm |
| Barrel length: | 2286 mm (L/30) | 2285 mm (L/30) |
| Width: | 1820 mm | 1820 mm |
| Track: | 1524 mm | 1524 mm |
| Height: | 1600 mm (with raised upper shield) | 1630 mm |
| Height of a line of fire: | 927 mm | 927 mm |
| Wheel diameter: | 1321 mm | 1335 mm |
| Combat weight: | 1092 kg | 1150 kg |
| Barrel weight: | 393 kg | 378 kg (without a 20 kg breech) |
 |
| A side view of a Russian caisson modified in Poland, with added top boxes for fuzes. |
 |

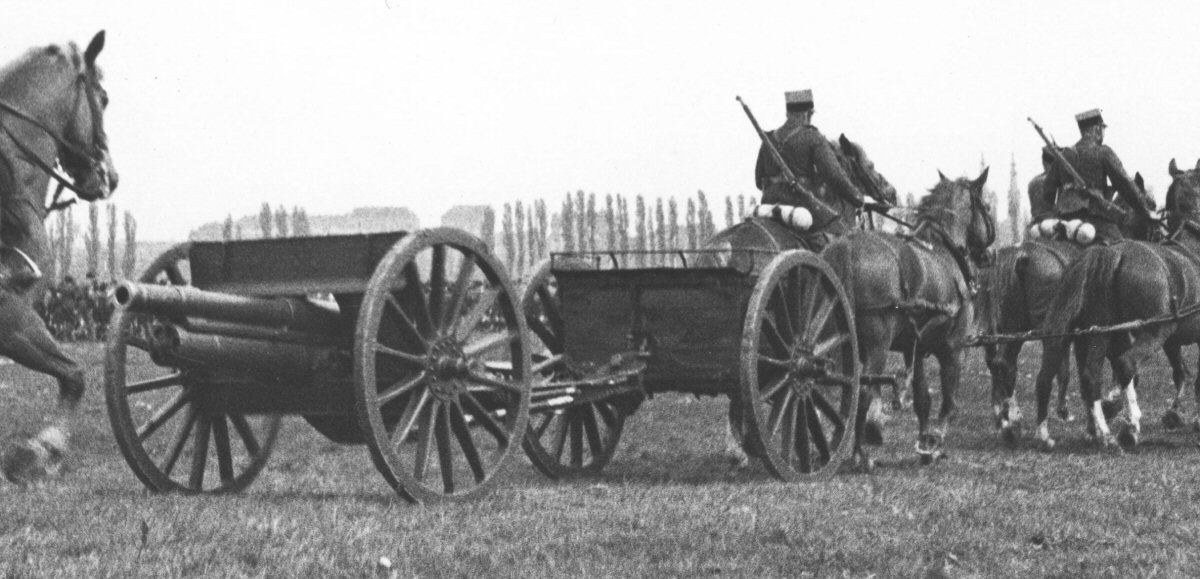

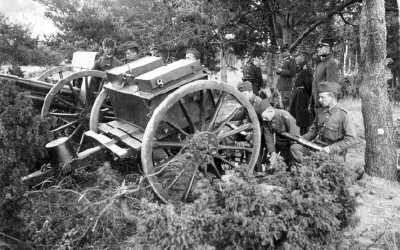

| The wz.02/26 gun of horse artillery, with an Italian caisson (its shaft should be normally folded). A photo was taken before shooting, because the gun is positioned 0.5 m before the caisson, according to a regulation (after several shots it would move rearwards and dig itself firmly in a ground). |
 |

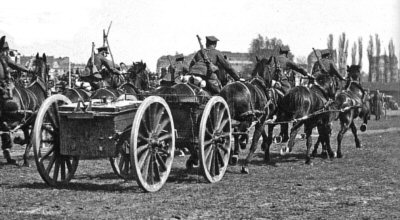

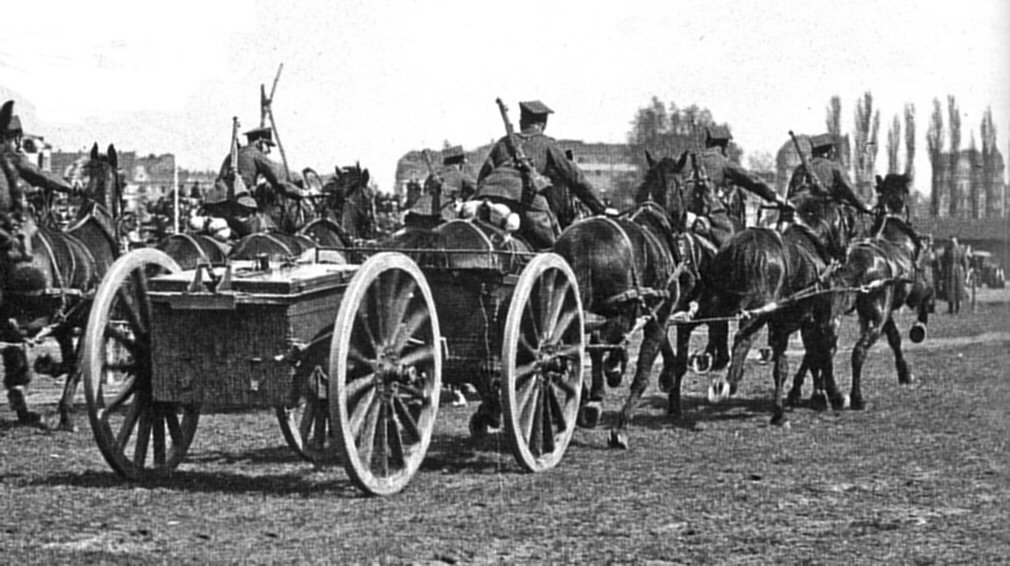

| Italian caisson of the horse artillery moving at a quick pace – the 1st Horse Artillery Detachment, Warsaw, 3 May 1938 parade. |
 |

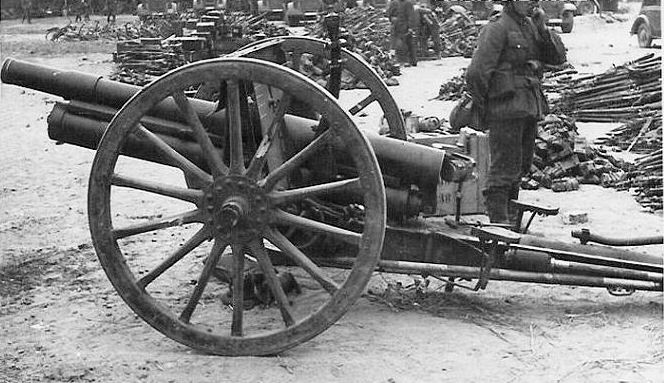

| Wz. 02/26 gun captured by the Germans. Well visible details, including folded angled aiming stick upon a tail, and arched sight. |
The cannons wz. 02 and wz. 02/26 had a box trail, with a fixed spade. The barrel was aligned with the trail, and had only limited traverse on an axletree. To change direction, the trail had to be lifted and turned by the crew, using a folding aiming handle above the spade. The barrel was attached to a hydraulic recoil mechanism with a spring recuperator. A distinguishing feature of both guns was a fixed shield with a large rectangular opening, attached to the axletree. Behind the opening there was a smaller movable shield, attached to the carriage and traversing with the barrel. There were also two folding shields above and under the fixed shield.
The gun was towed by a team of six horses, using a limber. Another six horses towed a caisson with a limber. Russian-origin limbers, used in infantry artillery, carried 36 rounds, and caissons – 44 rounds, in nine or eleven four-round drawers[note 1]. Ammunition was unitary. Fuzes were kept in two boxes added atop of the caisson. Italian limbers, used in horse artillery, carried 32 rounds, and caissons – 64 rounds, stored vertically (originally they came from Italian 75 mm wz. 06R guns, withdrawn earlier from Polish service). A number of Russian limbers were used in horse artillery as well (differing in lack of crew seats). Limbers and caissons of an ammunition supply column, of Russian origin, had 48 and 36 rounds respectively[1] (? - probable error, possibly these figures should be reversed).
In infantry artillery, the gun team travelled on limbers (three upon each), the gun commander and the caisson's commander had own horses, and there was a horseman on left horse in each pair. Therefore, the gun crew was 6 plus commander, and there were 14 men in total. In horse artillery all the crew rode horses. The gun crew was 7 plus commander, and there were 19 men in total, including the caisson's commander, 6 horsemen and 4 horse-holders.
| 75 mm ammunition used in Poland | ||
|---|---|---|
| (without tracer, indicating and other special rounds) | ||
| Round | weight | explosive weight |
| HE grenade wz.1910 (ordinary, steel) | similar to wz.1915 | ? kg |
| HE grenade wz.1915 (ordinary, steel) | 5.225 kg (without fuze) | 0.78 kg |
| HE grenade wz.1917 (long, steel) | 5.970 kg (without fuze) | 0.66 kg |
| HE grenade wz.1918 (cast steel) | 6.375 kg (without fuze) | 0.435 kg |
| Shrapnell wz.1897 (steel) | 7.250 kg | 0.11 kg of black powder, 261 of 12-gram balls |
| AP grenade wz.1910 (steel) | 6.400 kg | 0.09 kg |
| Semi-AP grenade A.L. R/2 (steel) | 7.980 kg | 0.435 kg |
You can see a chart of rounds from a manual at Axis History Forum.
Polish 75 mm cannons were also meant to be used against armoured targets in need, in spite of a lack of special direct sights. Wz. 02/26 cannons had a small advantage in this respect over French wz. 97 cannons, for they had aiming sticks, enabling quicker change of direction, and panoramic sights. However, an average accuracy against moving targets on trials before the war was estimated at 22%.
There were available AP and SAP grenades (both APHE in fact), but their quantity was limited in Poland. In May 1939 it was decided to increase their ratio to 8% – from 3 to 5 per a calculated unit of fire (60 rounds). Therefore, one gun should be completed with 10 AP rounds (two units of fire). In July 1939 it was increased more to 11 rounds per unit of fire in horse artillery (18,5%) and as much as 15 in infantry artillery (30 per gun – 25%), but most probably not all batteries were completed with expected numbers.
AP grenades wz. 1910 could pierce up to 68 mm armour at 500 m and 52 mm at 1000 m. On the other hand, ordinary HE grenades were usually enough to destroy all lightly armoured tanks in 1939, or at least damage them, even in case of close bursts, not mentioning direct hits. It should be however remembered, that in field artillery there were usually used time fuzes, activating in a pre-calculated place, rather than simple impact fuzes. In case of a direct hit, ordinary grenades could pierce 15 mm armour at 1200 m according to Polish tests.
 |

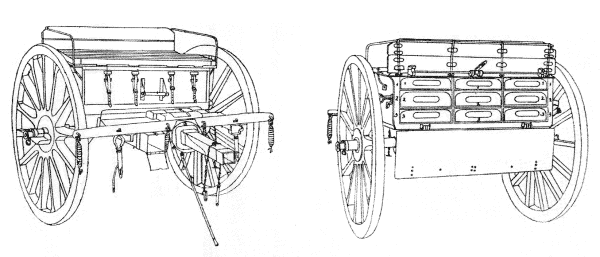

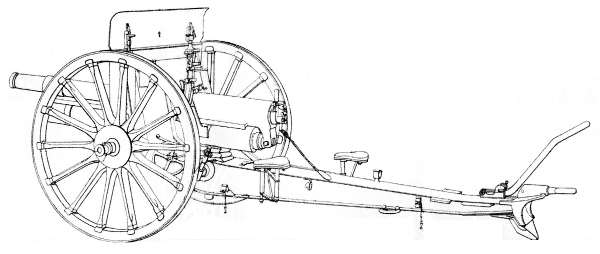

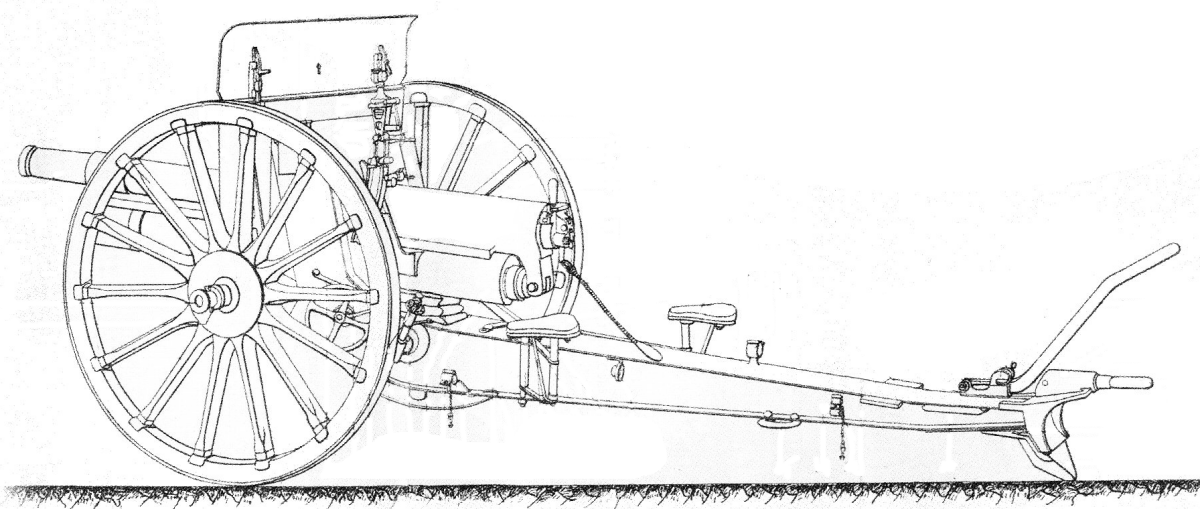

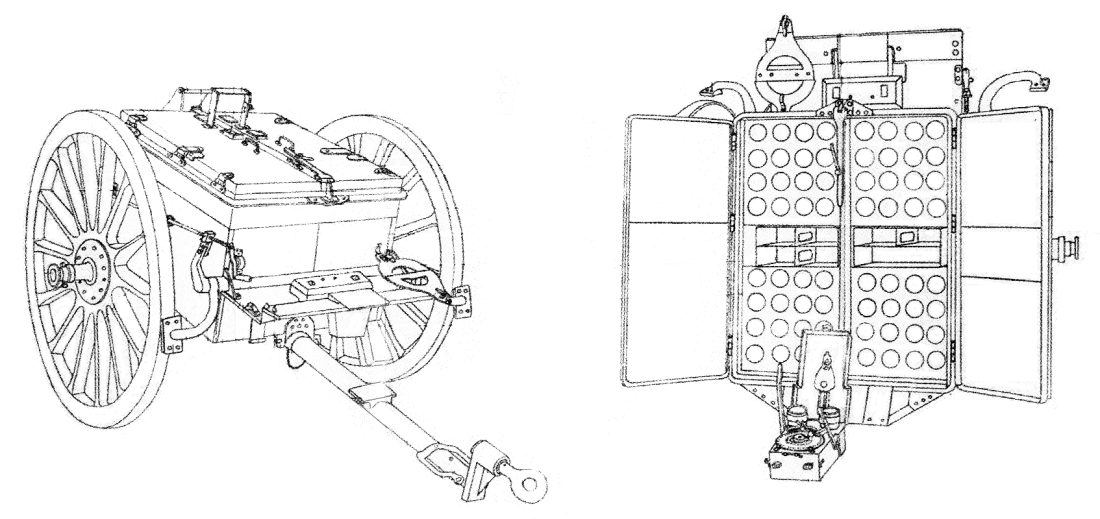

| 75 mm wz.02/26 gun (drawings from a manual) |
 |
| Russian-origin limber of the infantry artillery (with crew seats) - on the right, with an open case. |
|
|
| Italian-origin caisson of the horse artillery - on the right, in a combat position, with a fuze setter attached. |
Notes:
1. The issue of Russian-origin limbers and caissons, used by infantry artillery, is not entirely clear. They all used four-round drawers for ammunition. In Russian service, light artillery limbers M1900 carried 40 or 44 rounds in 10 or 11 drawers in four rows (gun limbers and caisson limbers respectively). Russian horse artillery limbers were lower and carried 28 rounds in 7 drawers in three rows, and had no seats for the crew. In each case, there was also central equipment drawer. A Russian caisson took 48 rounds in 12 drawers, without an equipment drawer.
Polish military handbook [5] quotes a number of 44 rounds in the caisson, but it is not clear, why it could not carry 48 rounds, because there is no information, that it would have any equipment drawer. Available photos do not show any other drawers than ammunition drawers either. Article [3] states however, that Polish caisson took 48 rounds. As for Polish-adapted limbers, they have three drawers in three rows each, for 36 rounds. Therefore, they might be in fact modified Russian horse artillery limbers, fitted with seats for a crew, and two additional drawers for ammunition instead of an equipment drawer, rather than light artillery limbers, which had four rows of slots – unless they were rebuilt much. It would be doubtful, that the Polish captured such numbers of horse artillery limbers only. Available publications do not mention any limber modifications, and do not notice this problem. It should be noted as well, that two limbers and one caisson in infantry artillery would carry 116 rounds according to official numbers (36+36+44), so there would be four rounds lacking to two full calculated units of fire (120). It is possible on the other hand, that for this reason, a horse artillery battery might have carried only 120 rounds instead of 128 (32+32+64).
Sources:
1. Andrzej Konstankiewicz: "Broń strzelecka i sprzęt artyleryjski formacji polskich i Wojska Polskiego w latach 1914-1939", Lublin, 2003, ISBN 83-227-1944-2
2. Konrad Nowicki: "Artyleria polska oczami jej dowódcy", in: Poligon nr.2(37)/2013
3. Paweł Rozdżestwieński: "Armata wz. 1902/26 w pułkach piechoty II Rzeczypospolitej", in: Militaria XX wieku nr. 1(46)/2012
4. Paweł Janicki, Piotr Dobrowolski: "Armata polowa 75 mm wz. 02/26", series: Wielki Leksykon Uzbrojenia Wrzesień 1939, Nr. 11, Warsaw, 2013
5. Józef Pyrek: "Sprzęt i amunicja artyleryjska - działoczyny", Włodzimierz, 1938
6. Jędrzej Korbal: "Pancernym w szczeliny", in: Wojsko i Technika - Historia Special issue 3/2018
