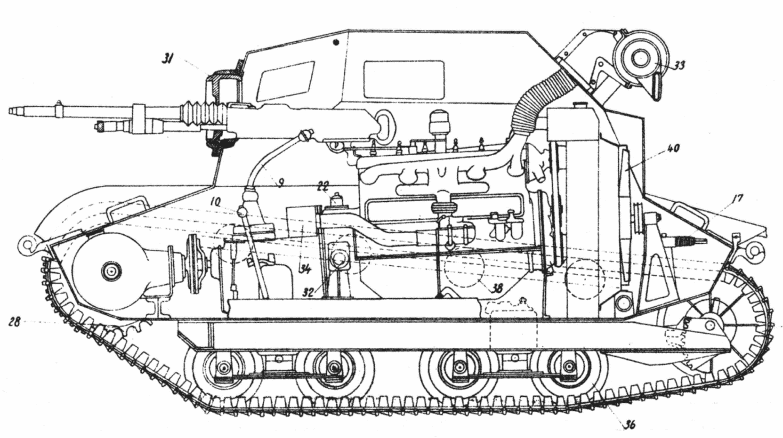

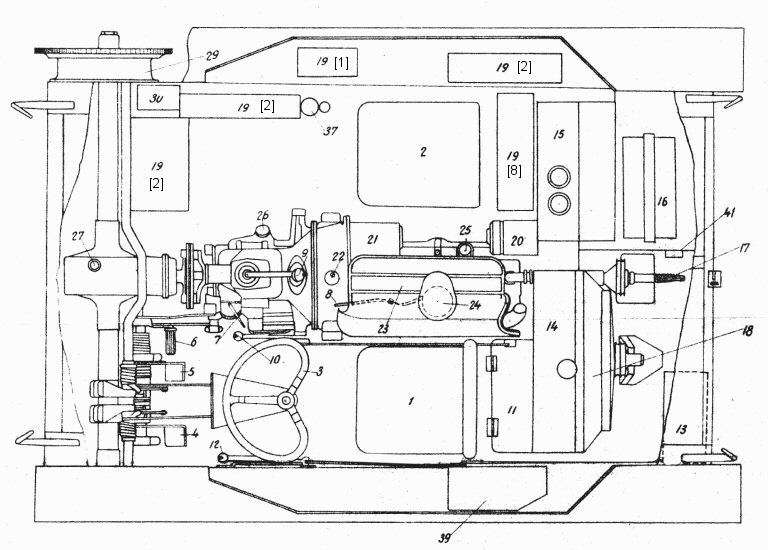

Polish TKS tankette cross-section, from a military manual.
 |
| 1 - driver's seat, 2 - gunner's seat, 3 - driving wheel, 4 - clutch pedal, 5 - brake pedal, 6 - acceleration pedal, 7 - acceleration lever, 8 - ignition regulation lever, 9 - gear change lever, 10 - lever opening hatch nr. 11, 11 - air inlet floor hatch, 12 - lever opening hatch nr.13, 13 - air outlet rear hatch, 14 - water radiator, 15 - fuel tank, 16 - battery, 17 - engine starter shaft, 18 - fan cover, 19 - ammunition cases (in brackets number of cases), 20 - dynamo, 21 - starter, 22 - starter button, 23 - engine cover, 24 - ignition apparatus, 25 - engine oil inlet and venting chimney, 26 - gearbox oil cork, 27 - differential oil cork, 28 - drive sprocket, 29 - brake drum, 30 - case for explosives, 31 - MG mounting, 32 - suspension mounting, 33 - muffler, 34 - air cleaner, 35 - idler wheel, 36 - road wheel, 37 - track, 38 - return roller, 39 - tool box, 40 - fan, 41 - box for fuses. |
 |
Back to TKS construction page.
Sources:
1. "Opis i wskazówki obsługi czołga TK-S" (Army manual)
